📘 Class 9 Maths Chapter 5: Introduction to Euclid’s Geometry (Complete Notes)

🔹 Introduction

Euclid’s Geometry is one of the oldest branches of mathematics. In this chapter, we learn about the basic concepts of geometry given by the Greek mathematician Euclid. Therefore, this chapter builds the foundation of geometry. Moreover, it helps us understand shapes, lines, and angles clearly.

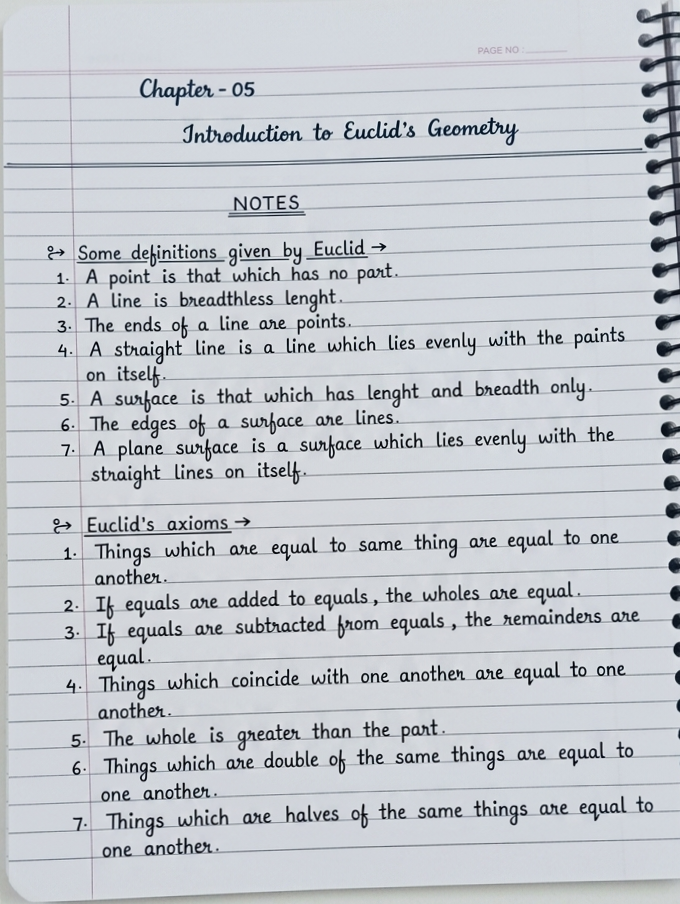

🔹 Euclid’s Definitions

Euclid defined basic terms used in geometry. These definitions help us understand geometric shapes easily.

• A point shows an exact position and has no size.
• A line has length but no thickness.
• A line segment has two endpoints.

Thus, these definitions form the base of geometry.

🔹 Euclid’s Axioms

Axioms are statements that are accepted as true without proof. Euclid gave some important axioms.

1. Things which are equal to the same thing are equal to one another.
2. If equals are added to equals, the wholes are equal.
3. If equals are subtracted from equals, the remainders are equal.
4. Things which coincide with one another are equal.
5. The whole is greater than the part.

Therefore, axioms are used to prove other results.

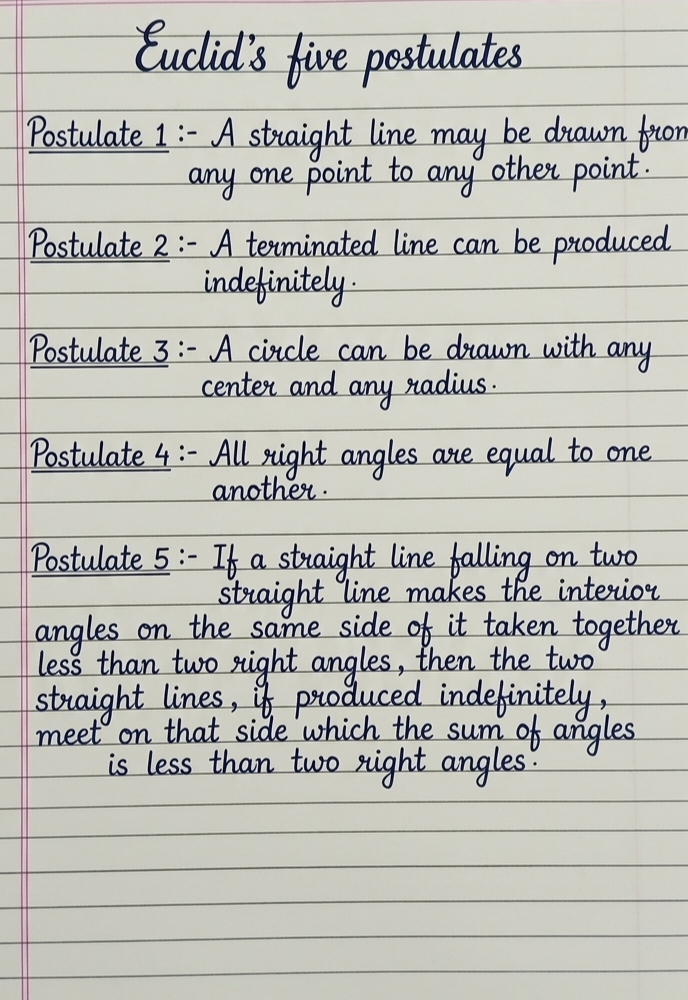

🔹 Euclid’s Postulates

Postulates are also statements accepted as true, but they are related to geometry.

1. A straight line can be drawn from any one point to another point.
2. A finite straight line can be extended indefinitely.
3. A circle can be drawn with any centre and radius.
4. All right angles are equal.
5. If a line intersects two lines and the interior angles on the same side are less than two right angles, then the lines meet on that side.

Thus, postulates help in constructing geometric figures.

🔹 Equivalent Versions of Postulate 5

Postulate 5 has many equivalent forms. One important form is:

👉 If a line intersects two parallel lines, then the sum of interior angles on the same side is 180°.

Hence, this postulate is very important in geometry.

🔹 Theorem Example

👉 Two distinct lines cannot have more than one point in common.

Explanation:
If two lines had more than one common point, then they would coincide completely. Therefore, they cannot be distinct lines.

🔹 Important Observations

Axioms are general truths, while postulates are specific to geometry. Moreover, both are used to prove theorems. Therefore, understanding them is very important.

🔹 Uses of Euclid’s Geometry

Euclid’s geometry helps in understanding shapes and constructions. For example, it is used in architecture, design, and engineering. Moreover, it forms the base for advanced geometry.

🔹 Important Points

Always remember the difference between axioms and postulates. Also, learn all postulates carefully. In addition, practice related questions regularly. Therefore, strong basics will help in higher classes.
